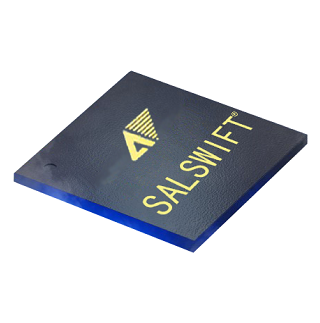

SALSWIFT 1

Video image, Consumer electronics, RISC-V

Product Brief

SF1 series FPSoC products are the first generation of "SWIFT" series launched by Anlogic Infotech.

SF1 has built-in high-performance RISC-V processor hardcore, DSC hard decoder module, PSRAM and PSRAM hardcore controllers. Positioned in markets of video processing and consumer electronics, it meets the diverse system needs of customers.

Contact sales

Product Table

Find 3 Results

Device	DFFs	LUTs	DistributeRAM	eRAM-9K	eRAM-Total	M18*18	PLL	CPU	DSI	DSC	PSRAM	USER IO	Package Methods	Package Size
SF1N60VG81C	5824	5824	46K	26	234K	10	2	1	2	1	2	31	VFBGA81	4.5*4.5
SF1S60VG81C/E	5824	5824	46K	26	234K	10	2	1	2	1	2	31	VFBGA81	4.5*4.5
SF1S60CG121I	5824	5824	46K	26	234K	10	2	1	2	1	2	59	TFBGA121	9*9

Product Features
Application Scenarios
Device Evaluation Board
Materials Download

Product Features

Equivalent logical resource

Equivalent to 6K LUTs logical resource
CPU hardcore

Built-in RISC-V CPU hardcore with three-stage pipeline; maximum main frequency is 160 MHz
MIPI hardcore controllers

2 Lane MIPI D-PHY, with maximum line rate of 2.2Gbps
PSRAM hardcore

Built-in 64/128Mb PSRAM, clock rate supports up to 200MHz

Application Scenarios

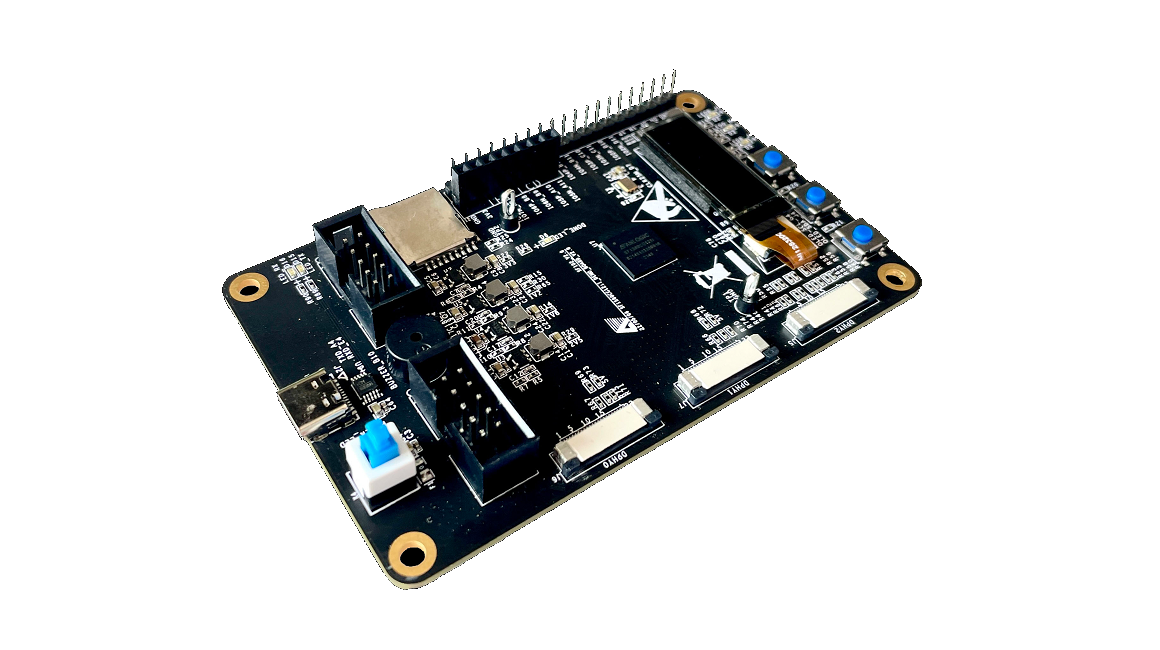

Device Evaluation Board

Learn more

Materials Download
