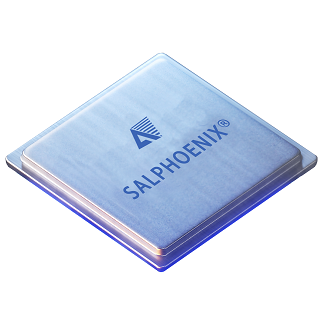

SALPHOENIX 1A

Video image, high-speed interfaces, DDR, PCIe, Communication infrastructure

Product Brief

PH1A series FPGA products are one of the "PHOENIX" series launched by Anlogic Infotech. The product offers 60-180K LUTs, high-speed serial I/Os, PCIE hardcores, DDR3/DDR4 memory interfaces and rich IP resources, positioned in the cost-effective programmable logic market; PH1A provides best-in-class transceiver and signal processing functions while maintaining low power consumption. PH1A is capable of meeting the size-, weight-, power- and cost-sensitive markets such as communication infrastructure, and medical, industrial and consumer electronics, providing developers with a better solution.

Contact sales

Product Table

Find 7 Results

Device	LUTs	DFFs	DistributeRAM	eRAM-20K	eRAM-Total	DSP	PLL	Serdes-Channels	Serdes-Rate	DDR-Rate	DDR-Width	MIPI-IO	USER IO	Package Methods	Package Size	Sphere Pitch
PH1A180SFG676	210240	233600	3300K	646	12920K	600	16	8	12.5Gbps	1866Mbps	x72	20	396	FCBGA676	27*27	1.0mm
PH1A90SBG484	115776	128640	1680K	272	5440K	240	12	4	10.3125Gbps	1066Mbps	x40	20	280	LFBGA484	23*23	1.0mm
PH1A90SEG324	115776	128640	1680K	272	5440K	240	12	8	6.25Gbps	1066Mbps	x16	-	148	LFBGA324	15*15	0.8mm
PH1A60GEG324/C	70848	78720	780K	158	3160K	120	12	-	-	-	-	-	211	LFBGA324	15*15	0.8mm
PH1A90SEG325	115776	128640	1680K	272	5440K	240	12	4	6.25Gbps	1066Mbps	x32	20	180	LFBGA325	15*15	0.8mm
PH1A400SFG676	417024	463360	5500K	914	18280K	840	20	8	12.5Gbps	1866Mbps	x72	\	400	FCBGA676	27*27	1.0mm
PH1A400SFG900	417024	463360	5500K	914	18280K	840	20	16	12.5Gbps	1866Mbps	x72	\	500	FCBGA900	31*31	1.0mm

Product Features
Application Scenarios
Materials Download

Product Features

High-performance, high-capacity configurable logic modules

Logic scales from 70,848 to 210,240 LUTs
High-performance digital signal processing unit

Support two-input adders, three-input adders, multipliers, and arithmetic logic units
High performance serial transceivers

Support up to 12.5 Gbps channel rate and multiple protocols
Integrated PCIe hardcores

Support GEN1/2/3, and X1/X2/X4 modes
Support DDR3 and DDR4 storage interface

Support up to 1866 Mbps, x8/x16/x32/x64 bit width
SEU error checking and error correction

Support single-bit error detection and error correction, and support double-bit error detection
Dedicated MIPI-IO

Support 2.5 Gbps, and CSI-RX
